Introduction to Acrylic Panel Light
Lighting has evolved to serve not only as a source of brightness but also as a key element in shaping ambiance and design. Therefore, the Acrylic Panel Light series (LD-14-61201 to LD-14-61207) was developed to meet both functional and aesthetic needs. With high-quality aluminum housing, precise cut-out options, and advanced SMD3030 LED chips, this collection provides reliable, energy-efficient lighting for residential, commercial, and hospitality environments.
Moreover, the series offers multiple round and square sizes, ranging from compact 3W fixtures to a powerful 20W option, ensuring flexibility for different applications.
Product Variants and Sizes
The Acrylic Panel Light comes in seven different models, each tailored for specific installation needs:

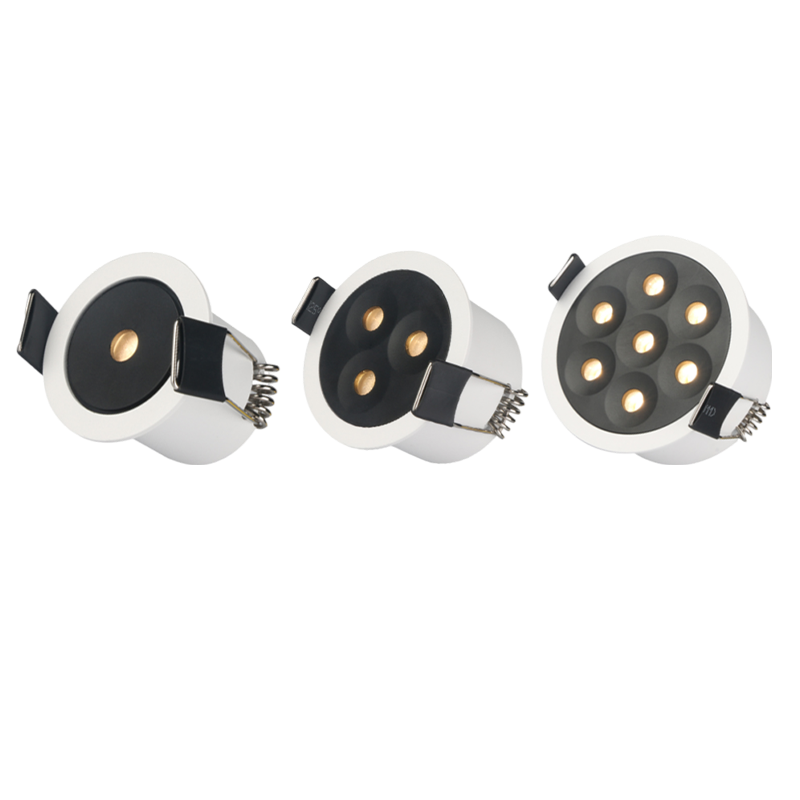

- LD-14-61201: Ø48*H38mm – 3W – 118lm – Cut out Ø43mm
- LD-14-61202: Ø63*H38mm – 6W – 240lm – Cut out Ø58mm
- LD-14-61203: Ø82*H38mm – 12W – 410lm – Cut out Ø75mm

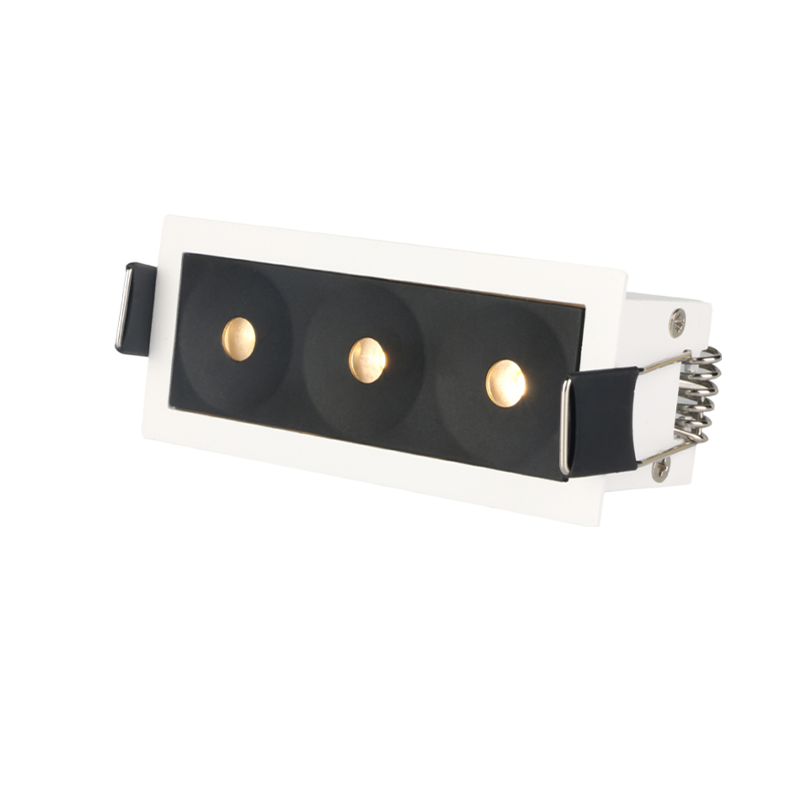

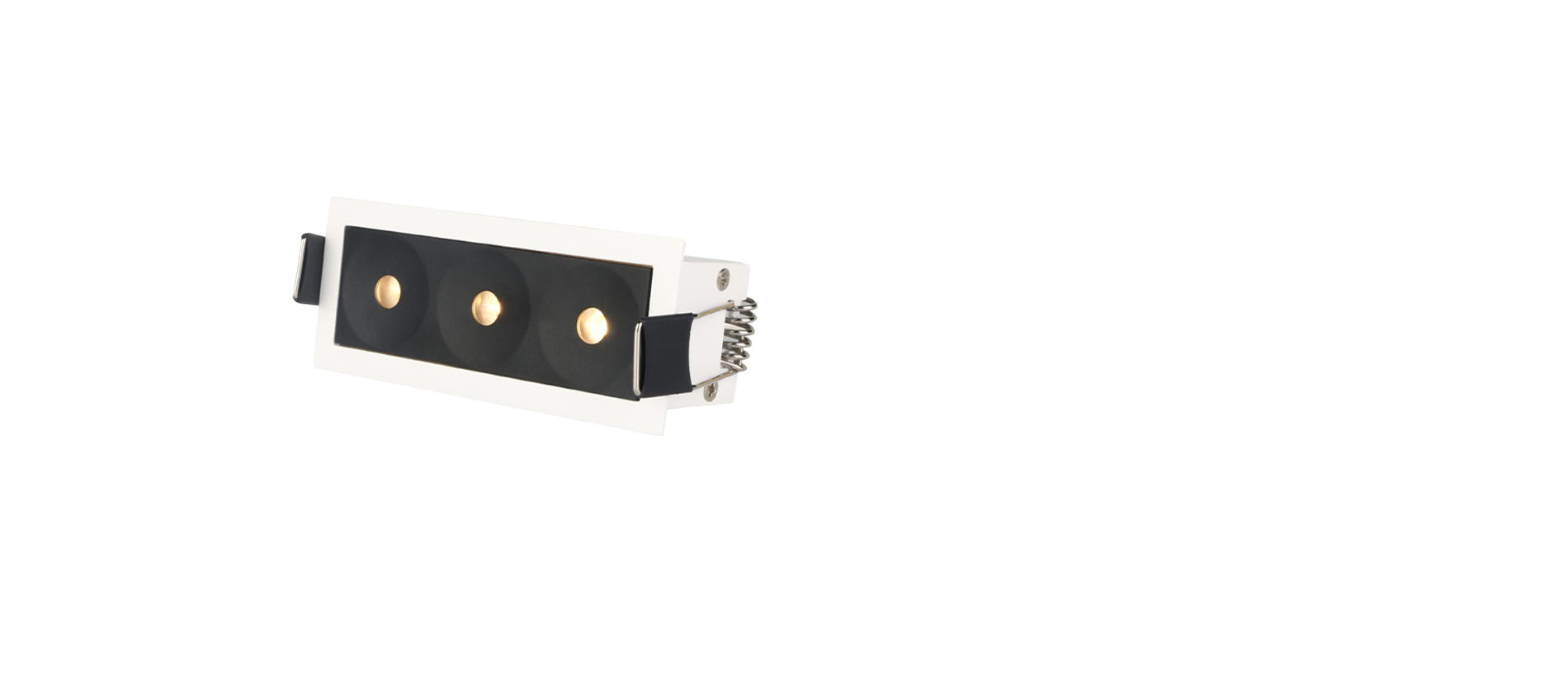

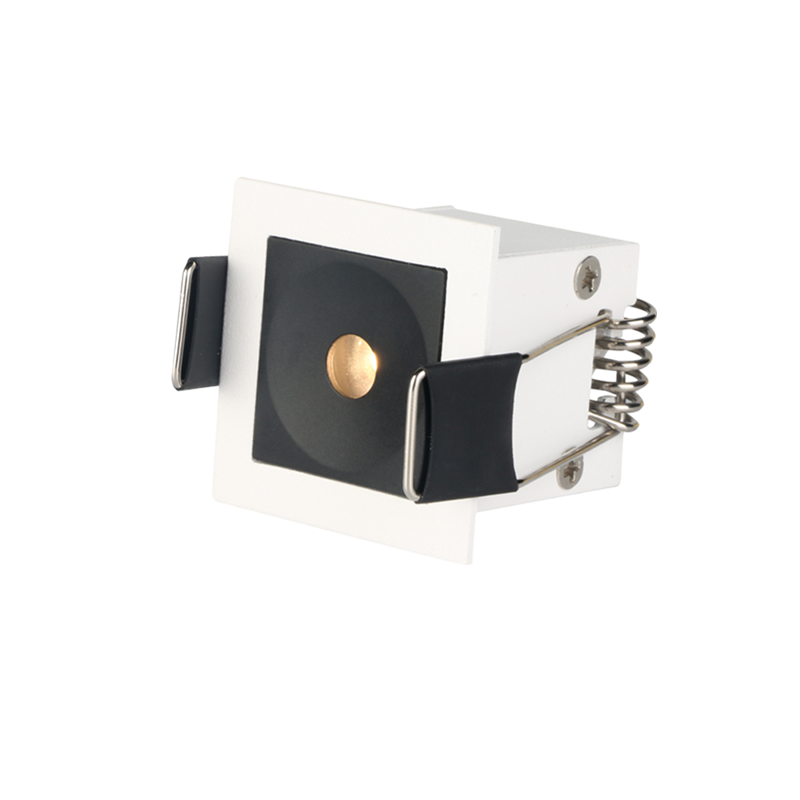

- LD-14-61204: Ø4343H38mm – 3W – 118lm – Cut out Ø38*38mm

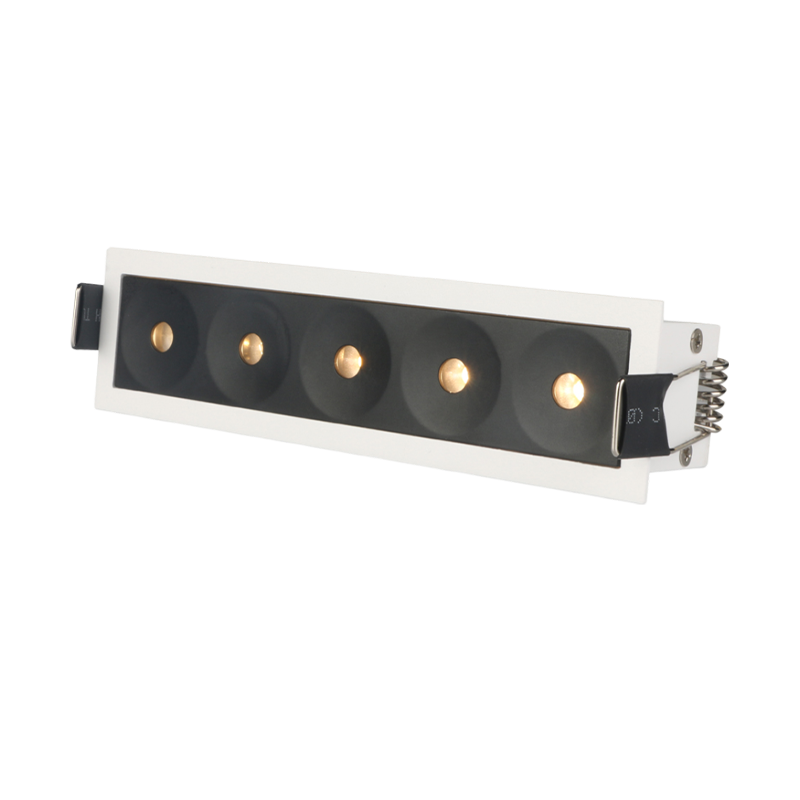

- LD-14-61205: Ø10243H38mm – 6W – 240lm – Cut out Ø95*35mm
- LD-14-61206: Ø16243H38mm – 10W – 410lm – Cut out Ø157*35mm
- LD-14-61207: Ø31243H38mm – 20W – 770lm – Cut out Ø307*35mm
All models feature a sand white & black finish, creating a modern yet versatile look that complements diverse interiors.
Key Features
1. Compact Yet Powerful
From 3W to 20W, the series covers small accent lighting to large-area illumination. Consequently, users can select the ideal model for each space without compromising on efficiency.
2. Flexible Design Options
Available in round and square designs, these panels adapt easily to various ceiling structures. In addition, their compact 38mm height makes them suitable for both shallow and deep ceilings.
3. High-Performance LED Technology
Equipped with SMD3030 LEDs, the fixtures ensure stable light output, long lifespan, and consistent color quality. Moreover, with CRI 80/90, they provide accurate color rendering in any setting.
4. Adjustable Lighting Atmosphere
Users can choose between 3000K, 4000K, and 6000K color temperatures. As a result, the fixture is equally effective in creating warm, neutral, or cool lighting environments.
5. Precise Light Distribution
The 24°/36° beam angle allows for both focused and general illumination. Therefore, it is perfect for task lighting, accent highlighting, or ambient lighting.
6. Stable Power and Long-Term Reliability
While most models have PF 0.5, the largest option (LD-14-61207) features PF 0.9 for enhanced stability in commercial and professional projects.
Applications
Residential Use

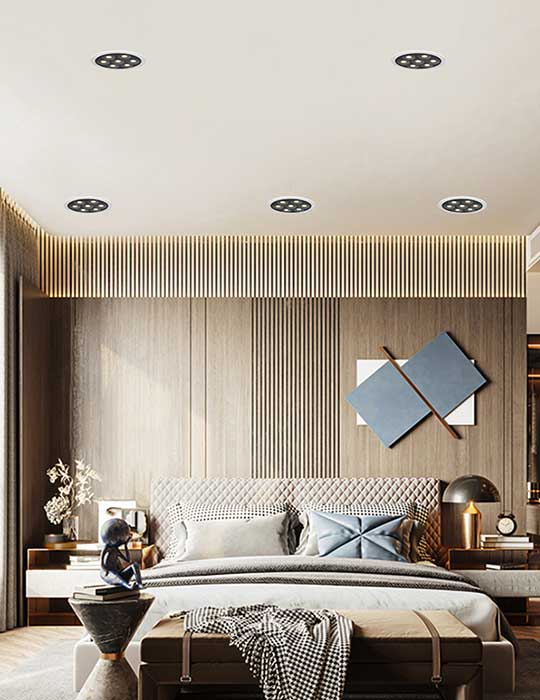

The smaller wattage models (3W–6W) are ideal for hallways, kitchens, and bedrooms, providing functional and stylish lighting.
Commercial and Retail Spaces

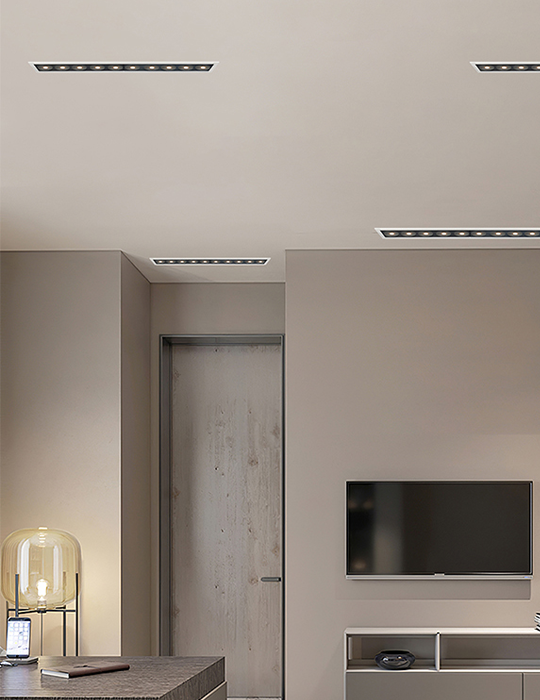

The mid-range models (10W–12W) deliver consistent illumination for offices, shops, and restaurants, enhancing both visibility and aesthetics.
Large-Scale Projects
The 20W version (LD-14-61207) is suitable for conference rooms, lobbies, and exhibition halls, where strong, stable illumination is required.
Technical Specifications
- Sizes: Ø48H38mm / Ø63H38mm / Ø82H38mm / Ø4343H38mm / Ø10243H38mm / Ø16243H38mm / Ø31243*H38mm
- Cut-Out Sizes: Ø43 / Ø58 / Ø75 / Ø3838 / Ø9535 / Ø15735 / Ø30735
- Surface Color: Sand White & Black
- Wattages: 3W / 6W / 12W / 3W / 6W / 10W / 20W
- Luminous Flux: 118lm / 240lm / 410lm / 118lm / 240lm / 410lm / 770lm
- Material: Aluminum
- LED Type: SMD3030
- Beam Angle: 24° / 36°
- Power Factor: 0.5 (PF 0.9 for LD-14-61207)
- CRI: 80/90
- Color Temperatures: 3000K / 4000K / 6000K
Why Choose Acrylic Panel Light?
Unlike traditional ceiling lamps, the Acrylic Panel Light series combines slim design, durable construction, and efficient LED technology. Furthermore, with multiple sizes, beam angle choices, and power options, it adapts to a wide range of projects, from small residential installations to large commercial layouts.
For complete project planning, it can also be paired with our Indoor Lighting collection and Light Source & Accessory products for a unified lighting solution.
Final Thoughts
The Acrylic Panel Light (LD-14-61201~LD-14-61207) is a comprehensive lighting series that balances performance, design, and adaptability. Moreover, its variety of sizes and wattages ensures that it fits perfectly into diverse architectural applications.
