Introduction to Linear Grille Light
In modern architecture and interior design, lighting plays a critical role not only in functionality but also in shaping the overall atmosphere. Therefore, the Linear Grille Light series (LD-14-61101 to LD-14-61104) has been designed to provide clean lines, uniform illumination, and a professional look. With multiple wattage and size options, this series is perfect for residential, commercial, and hospitality environments where precise and stylish lighting is essential.
Moreover, thanks to advanced SMD3030 LED technology, high CRI values, and a durable aluminum+PC construction, the Linear Grille Light ensures consistent performance and long-lasting reliability.
Product Variants and Sizes

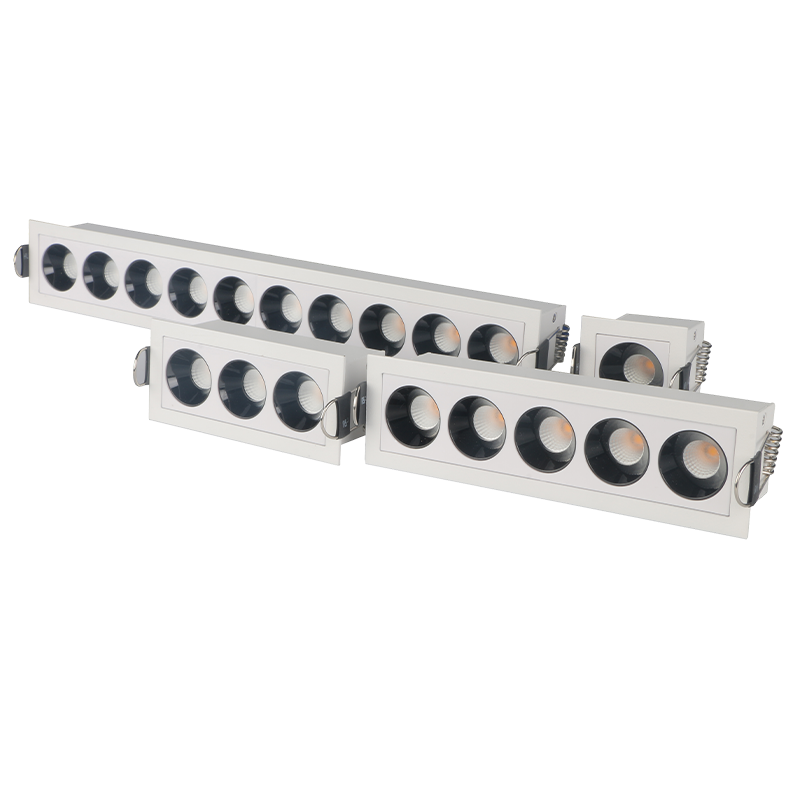

The series offers four different models, each tailored to meet specific lighting requirements:

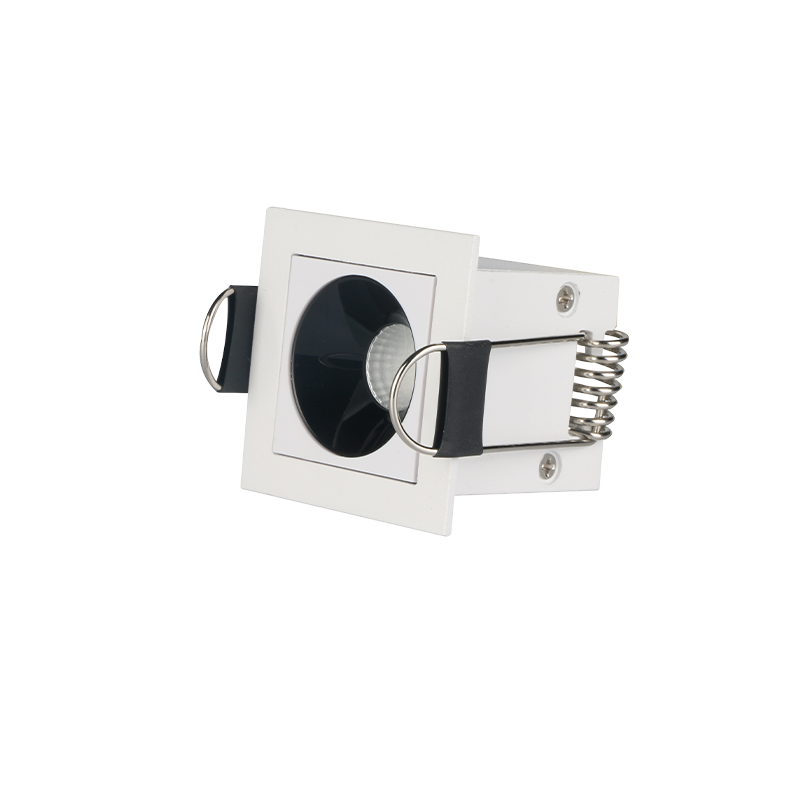

- LD-14-61101: Φ4343H38mm – 3W – 120lm – Cut out Φ38*38mm
- LD-14-61102: Φ9343H38mm – 6W – 411lm – Cut out Φ88*35mm

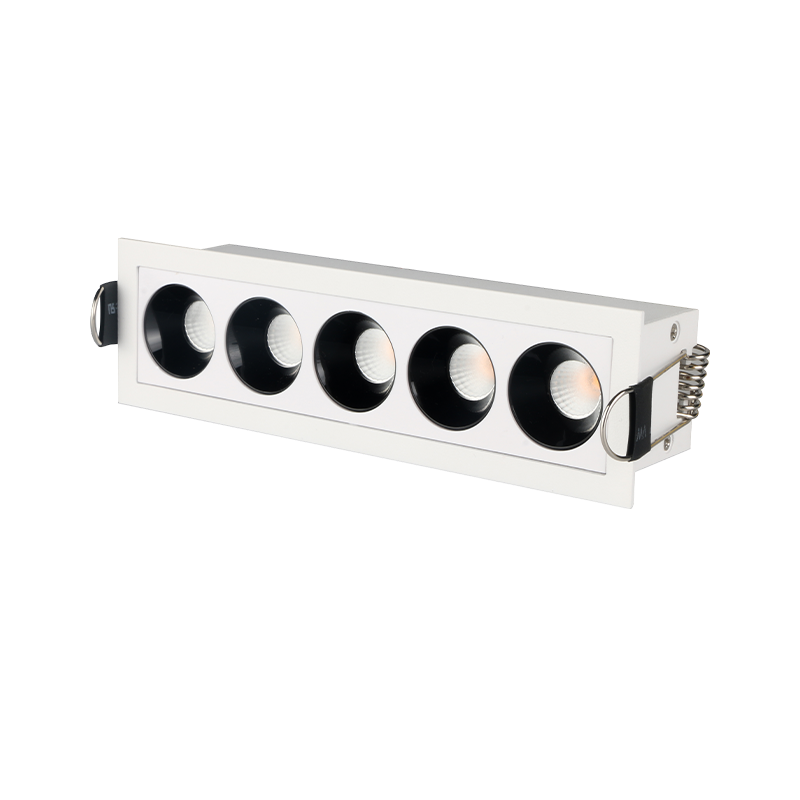

- LD-14-61103: Φ14543H38mm – 10W – 693lm – Cut out Φ140*35mm
- LD-14-61104: 27843H38mm – 20W – 1456lm – Cut out Φ273*35mm
All models feature a sand white finish, blending seamlessly into different ceiling styles and interiors.
Key Features
1. Sleek and Minimalist Design
The grille layout creates a streamlined visual effect. As a result, it integrates naturally into ceilings without being obtrusive, making it suitable for both modern and classic interiors.
2. Multiple Wattage Options
From 3W accent lighting to 20W high-output illumination, the series covers small, medium, and large applications. Consequently, users can select the ideal version depending on the size of the room or project requirements.
3. High-Performance LED Technology
Equipped with SMD3030 LED chips, the lights deliver stable brightness, excellent efficiency, and longer lifespan. Furthermore, with CRI 80/90, they guarantee natural color rendering across different spaces.
4. Adjustable Lighting Atmosphere
Available in 3000K, 4000K, and 6000K, the Linear Grille Light adapts to warm, neutral, or cool lighting needs. Therefore, it provides flexibility for various interior moods and design preferences.
5. Precision Beam Control
With a 24°/36° beam angle, the light can either highlight architectural features or spread evenly for general illumination. In addition, this versatility makes it useful for both task and ambient lighting.
6. Durable and Reliable Build
Constructed with aluminum + PC material, the fixtures ensure excellent heat dissipation and long-term durability. Combined with PF 0.5 power stability, they are well-suited for residential and commercial use.
Applications
Residential Use
Compact models (3W–6W) are ideal for hallways, kitchens, and study rooms, delivering subtle yet effective lighting.
Offices and Retail
Medium models (10W) work well in shops, meeting rooms, and restaurants, creating a balance between brightness and design.
Commercial Projects
The 20W model (LD-14-61104) provides powerful illumination for large halls, showrooms, and lobbies, ensuring strong visual impact.
Technical Specifications
- Sizes: Φ4343H38mm / Φ9343H38mm / Φ14543H38mm / 27843H38mm
- Cut-Out Sizes: Φ3838 / Φ8835 / Φ14035 / Φ27335
- Surface Color: Sand White
- Wattages: 3W / 6W / 10W / 20W
- Luminous Flux: 120lm / 411lm / 693lm / 1456lm
- Material: Aluminum + PC
- LED Type: SMD3030
- Beam Angle: 24° / 36°
- Power Factor: 0.5
- CRI: 80/90
- Color Temperatures: 3000K / 4000K / 6000K
Why Choose Linear Grille Light?
Unlike traditional ceiling fixtures, the Linear Grille Light series combines slim dimensions, modern design, and flexible wattage choices. Moreover, its durable construction and adjustable light distribution make it a reliable option for both residential and commercial applications.
For a cohesive design, this product can be paired with our Indoor Lighting collection and Light Source & Accessory solutions, creating a unified project layout.
Final Thoughts
The Linear Grille Light (LD-14-61101~LD-14-61104) series offers a refined combination of functionality, flexibility, and design appeal. Therefore, it stands as an excellent solution for modern lighting needs, from compact residential setups to large-scale architectural projects.
