| UT-60-03601 | UT-60-03602 | UT-60-03603 | UT-60-03604 | UT-60-03605 | |
|---|---|---|---|---|---|
| Product Size | 571*217*90mm | 721*217*90mm | 697*361*209mm | 846*361*209mm | 1096*361*209mm |
| Surface Color | Black/White | ||||
| Wattage | 100W | 150W | 200W | 300W | 400W |
| Material | Die-casting aluminium+PC | ||||
| Solar Panel | 6V/18W | 6V/24W | 6V/42W | 6V/53W | 6V/70W |
| Battery | 3.2V/18AH | 3.2V/24AH | 3.2V/30AH | 3.2V/35AH | 3.2V/50AH |
| Color Temperature | 3000K/4000K/6500K | ||||
| IP Rating | IP65 | ||||
Ultra-High Efficacy Solar Street Light – 180 Lumens Per Watt

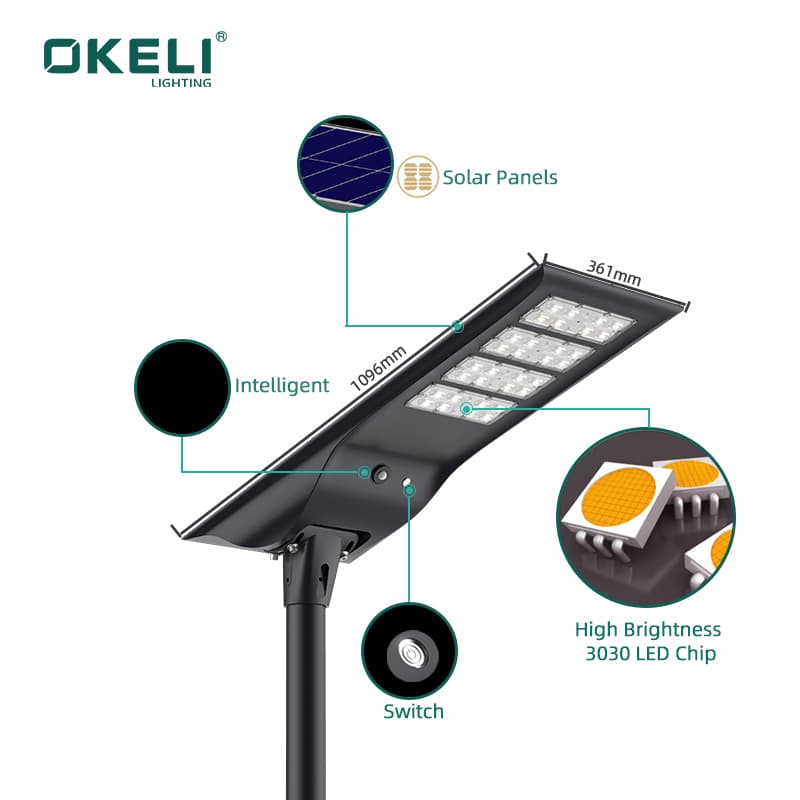

The UT-60-036 series represents the pinnacle of OKELI‘s solar street light engineering, delivering an extraordinary 180 lumens per watt – among the highest efficacy ratings available in the solar street light market today. Available in 100W, 150W, 200W, 300W, and 400W configurations, these black/white die-cast aluminum fixtures with PC covers utilize advanced SANAN 3030 LED technology to provide maximum illumination with minimum energy consumption. The series is designed for large-scale infrastructure projects including highways, major roadways, industrial zones, and commercial complexes.
Superior SANAN 3030 LED Performance
SANAN 3030 LEDs offer higher luminous flux per chip and better thermal performance than smaller form factors. The 180 lumens per watt efficiency ensures maximum brightness with minimum energy consumption, significantly reducing the required solar panel and battery capacity compared to less efficient alternatives. The RA80 color rendering index ensures accurate color perception for security and visibility. Choose from 3000K warm white, 4000K natural white, or 6500K cool white to match any application.




Optimized Solar Energy System
The UT-60-036 series features carefully matched battery and solar panel combinations:
| Model | Wattage | Battery | Solar Panel | Dimensions |
|---|---|---|---|---|
| UT-60-03601 | 100W | 3.2V/18Ah | 6V/18W | 571×217×90mm |
| UT-60-03602 | 150W | 3.2V/24Ah | 6V/24W | 721×217×90mm |
| UT-60-03603 | 200W | 3.2V/30Ah | 6V/42W | 697×361×209mm |
| UT-60-03604 | 300W | 3.2V/35Ah | 6V/53W | 846×361×209mm |
| UT-60-03605 | 400W | 3.2V/50Ah | 6V/70W | 1096×361×209mm |
With 4-6 hours of charging time and 10-12 hours of working time per full charge, these lights provide reliable overnight illumination even during extended cloudy periods.
Superior LiFePO4 Battery Technology
The 32650/32700 LiFePO4 (Lithium Iron Phosphate) battery cells offer several critical advantages over standard lithium-ion batteries:




Premium Die-Cast Aluminum+PC Construction
The die-cast aluminum housing with PC lens provides exceptional heat dissipation, corrosion resistance, and impact strength. The IP65 waterproof rating ensures reliable performance in rain, snow, dust, and high-humidity environments.
The True Cost Advantage
Installing traditional AC street lights in remote locations requires trenching and laying armored cable — costing $15 to $50 per meter. The UT-60-036 series eliminates these expenses entirely. With zero trenching costs, zero electricity bills, and minimal maintenance requirements, the total cost of ownership is dramatically lower than traditional AC solutions.


Applications
The UT-60-036 series is ideal for highways, major roadways, industrial zones, large commercial complexes, ports, airports, and municipal public spaces.
OEM/ODM Customization Available
OKELI offers comprehensive OEM/ODM customization services for the UT-60-036 series. Backed by a 2-year warranty, this series delivers exceptional value for large-scale infrastructure lighting projects worldwide.
